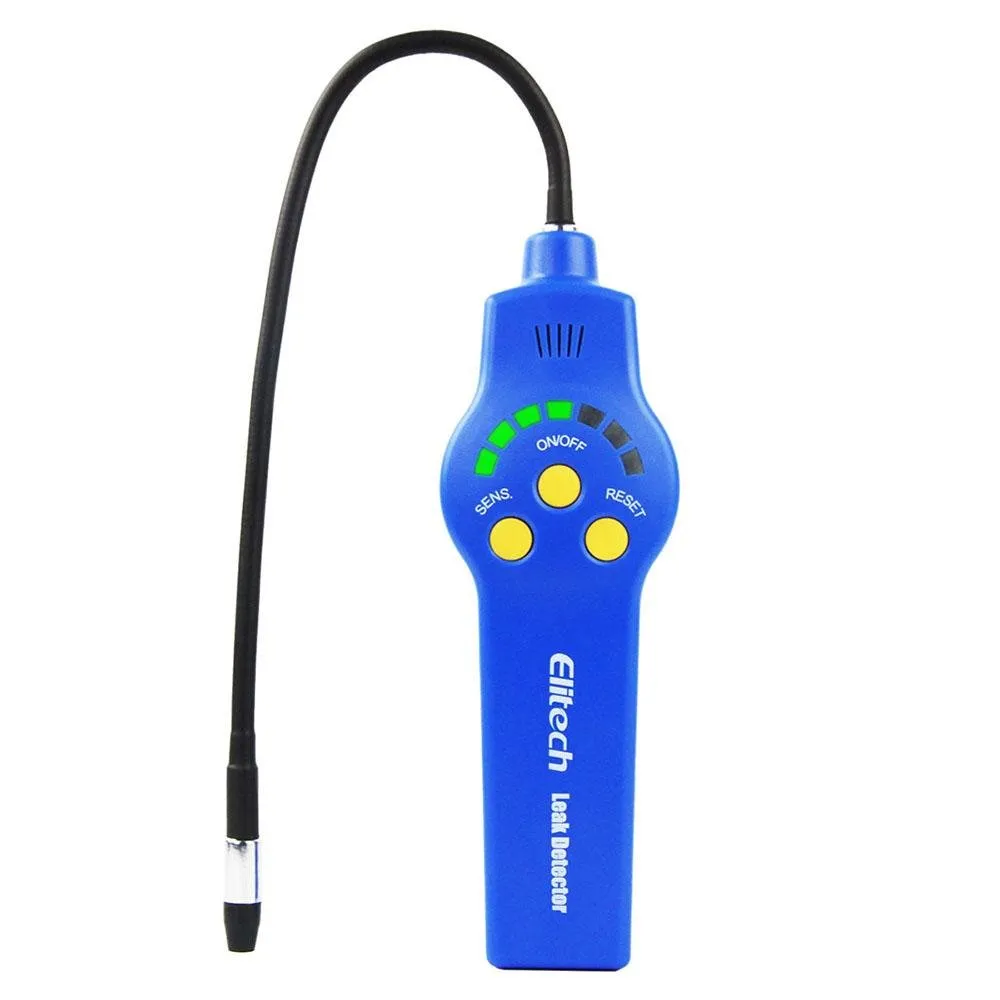

Elitech Halogen Leak Detector HLD-200 is a newly high-performance intelligent halogen leak detector. The new version designed with LED displaying is super convenient for easy carrying and operation.

Features

• Adopt advanced, low power consumed, the eight-bit microprocessor controller
• Dual-color LED indicator lights with progressive and real-time display
• Sensitivity adjustable, seven levels alarming indicated by LED display

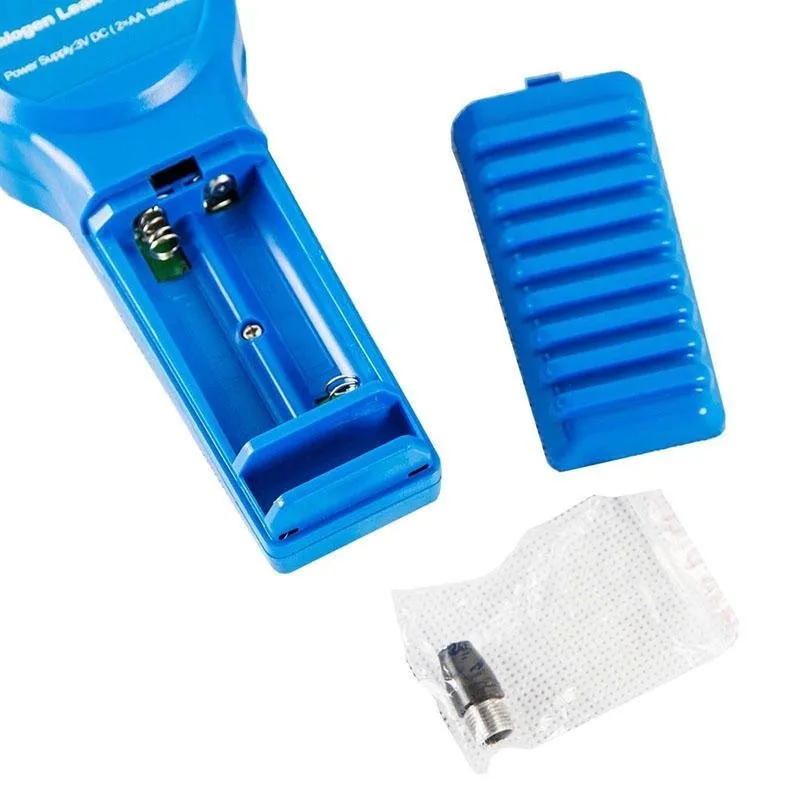

• Modular sensor, convenient for maintenance
• Seven levels audible and visual alarm
• Auto-reset testing when the detector is turned on
• Battery voltage indication
• Service: 1-year warranty. 30 days free & easy return

Application:
1. The leak-detection in the vocation of freeze, refrigeration, and air-conditioner;
2. The leak-detection for air-conditioner in the car;
3. It will respond to all halogen gases(including Chlorine and Fluorine). Including:
CFCs e.g. R12, R11, R500, R503 etc;
HCFCs e.g. R22, R123, R124, R502 etc;
HFCS e.g. R134a, R404a. R125 etc;
And other mixtures, e.g. AZ-50, HP62, MP-39, etc.
4. Detect Ethylene Oxide gas leaks in hospital sterilizing equipment(it will detect the homogenate carrier gas).
5. Detect SF-6 in high voltage circuit breaks.
6. Detect most gases including Chlorine, Fluorine and Bromine(halogen gas).
7. Detect cleaning agents used in dry cleaning applications such as perchloroethyl.
Detect halogen gases in fire-extinguishing system.

[Custom Product Tab]

User Manual:

Elitech HVAC Tools Catalog Brochure:

Instruction Video:

[/Custom Product Tab]

Specification

• Sensor type: negative corona sensor
• Ultimate sensitivity: 3 g/yr
• Warm-Up Time: 5s
• Operating Environment:
• Temperature: 0°C ～52 °C
• Humidity: ＜95% RH (non-condensing)

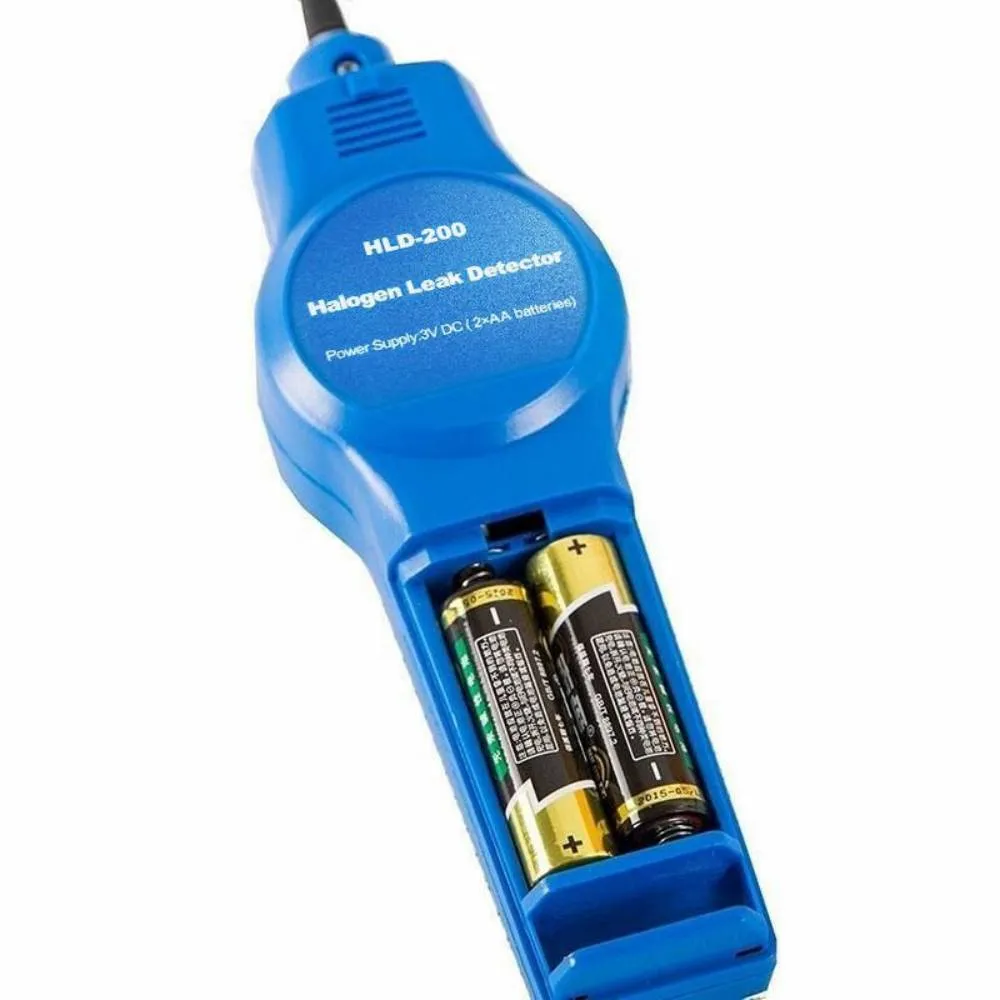

• Power supply: 2 AA alkaline batteries
• Sensor tip life under continuous operation: more than 50 hours in normal detecting status。
• Specification: 175 x 55 x 34 (mm)
• Probe length: 305 mm
• Probe life: about 30h
