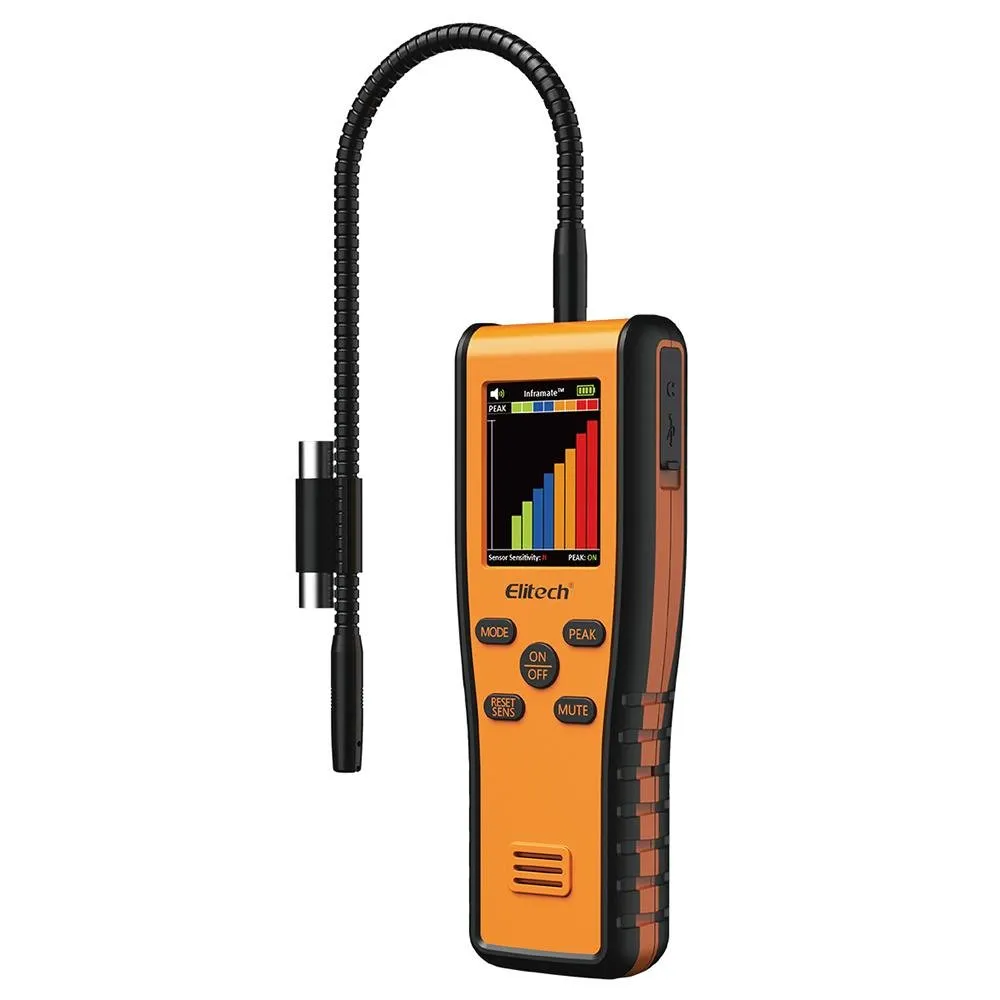

Elitech Inframate C, a CO2 leak detector, is independently developed by Elitech based on the infrared detection principle. This new product combines infrared these series feature a sensor that has higher accuracy and a much longer service life. Also with exclusive ergonomic design and innovated large TFT LCD display screen, the detector optimizes the user experience and presents the detection results more intuitively and diversely.
Feature

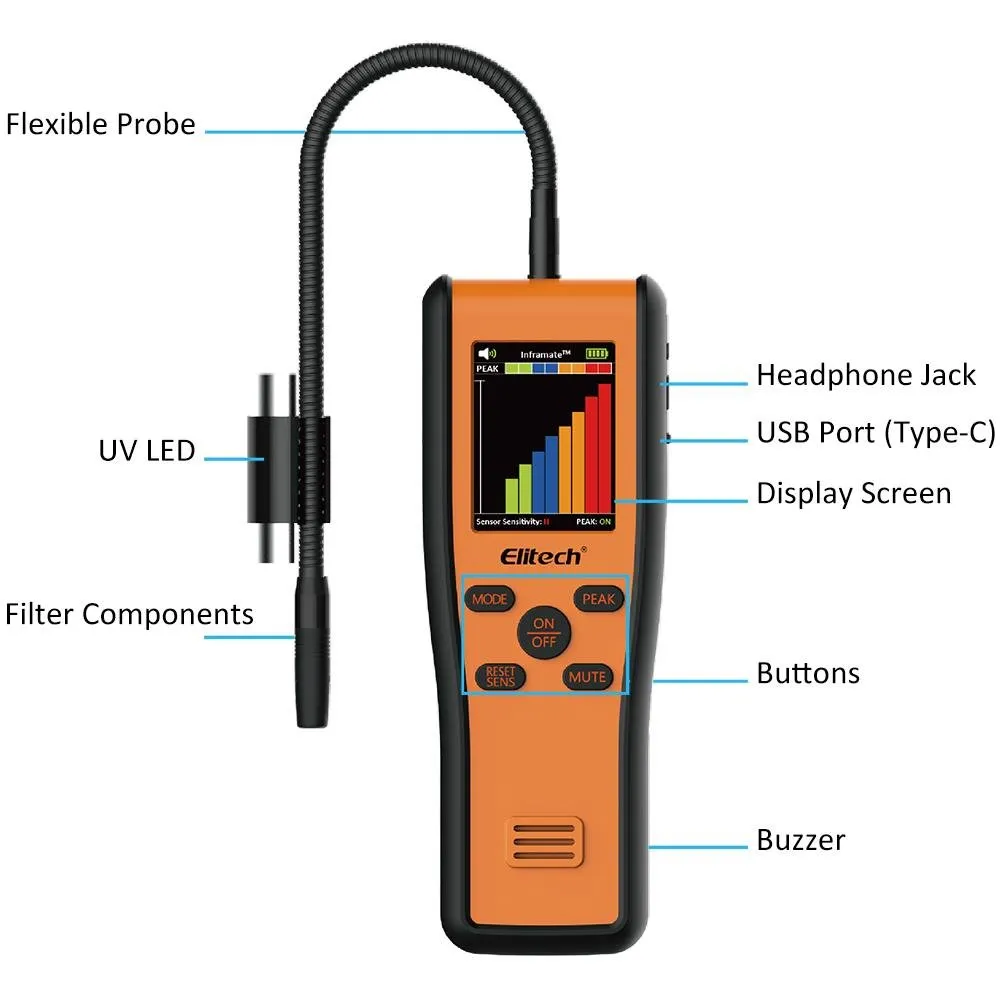

- Flexible stainless steel probe design, Easy to handle and ultra-effective at locating even the most difficult to find leaks.
- Advanced infrared sensor, much more stable and lower possibility of being contaminated, strong anti-interference ability, and with a sensor life of 40,000 hours
-
Adaptive sensitivity adjustment, up to 0. 2oz (6g) per year

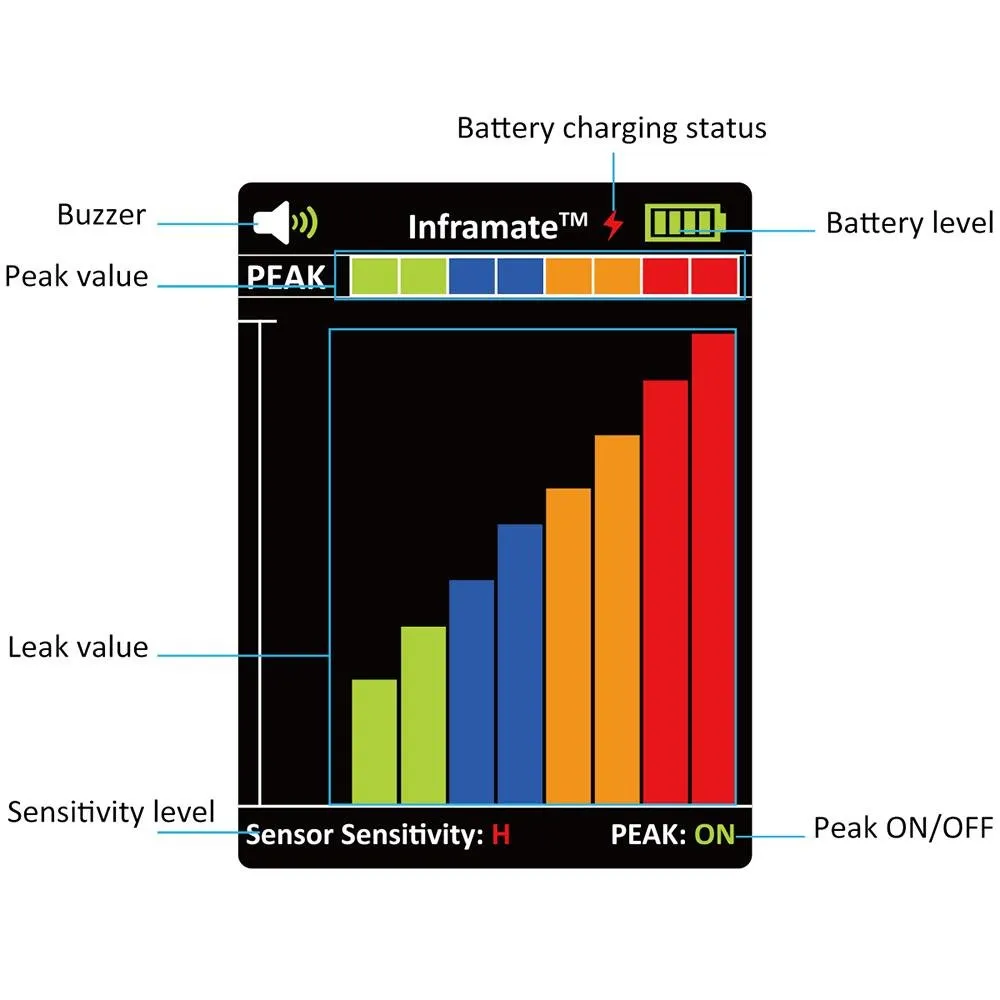

- Innovative large TFT LCD display screen, showing the leakage level in colorful bars, the detector optimizes the user experience and presents the detection results more intuitively and diversely.
- Service: 2-year warranty
Specification
|
Sensor lifetime |
40,000 hrs |
|
Sensitivity range |
3 Levels |
|
Maximum sensitivity |
6g/yr |
| Alarm mode | Audible and visual alarm, TST indication |
| Auto off | After 10 minutes of inactivity |
|
Reset time |
< 3s |
|
Warm-up time |
about 30s |
| Response time | < 1s |
|
Refrigerants |
R744 （CO2） |
|
Power supply |

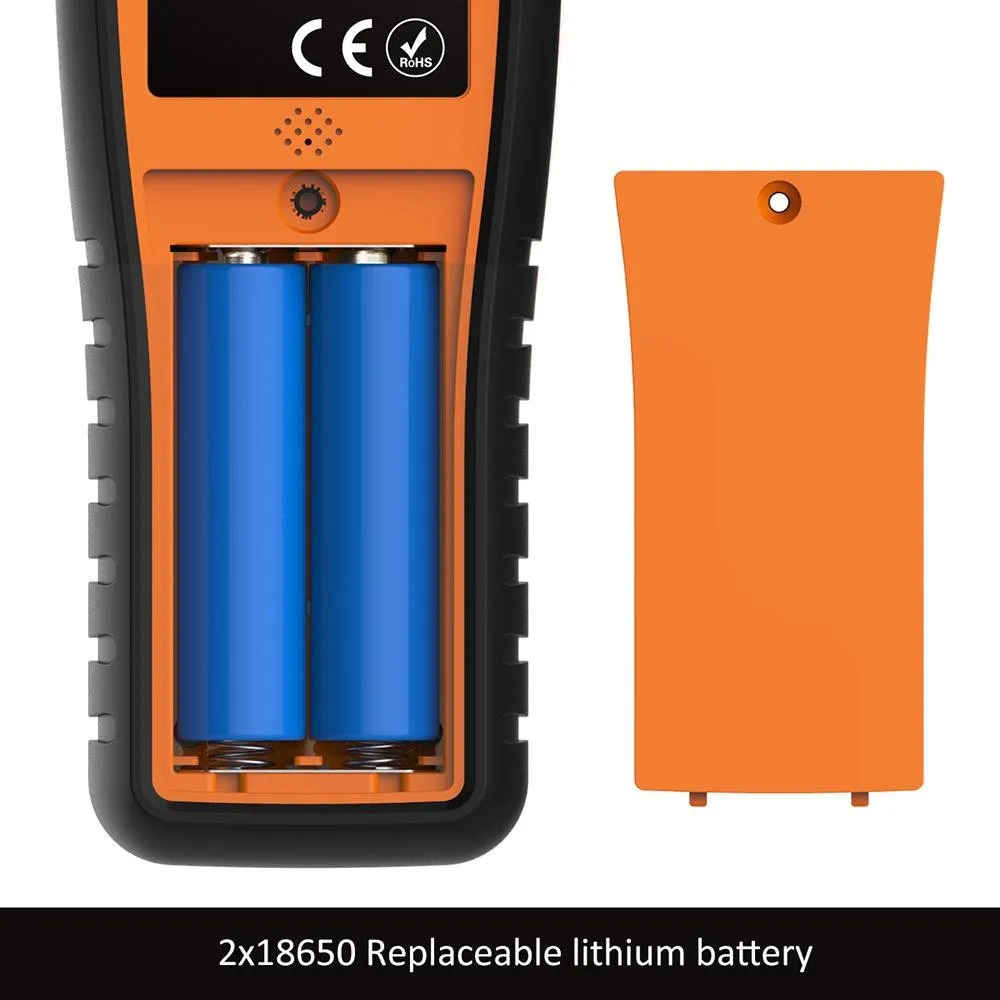

2* 18650 Lithium Battery |
|
Battery life |
8h, Charging time approx. 4 hours |
| Charging Voltage | DC 5V, 1A |
|
Approvals |
Compliant to RoHS, SAE-J1627 and EN14624 |
| Storage temperature | -4°F~140°F(-20°C ~ 60°C) |
| Operating environment |
Temperature: 14°F to 125.6 °F(-10°C-52°C); Humidity: Maximum 90%RH(non-condensing) |

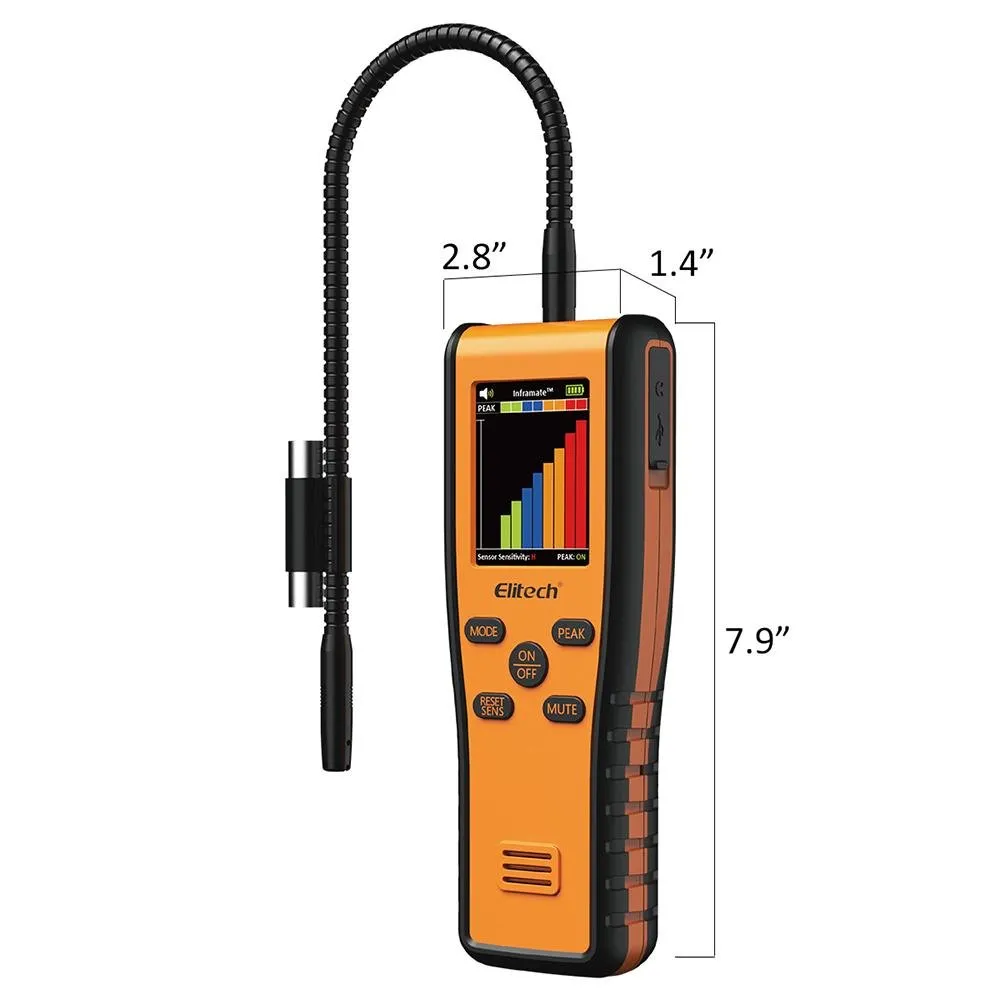

| Weight | 15.9oz (450g) |
User Manual:
HVAC Tools Brochure:
